Citation: Turner R, “Improving Drug Stability & Drug Delivery by Modification of MDI Canister Surfaces”. ONdrugDelivery Magazine, Issue 62 (Dec 2015), pp 33-35.
Richard Turner explains how, in recent years, a number of surface coatings have been developed that can be applied to MDIs canisters and valve components, to protect the contents from deposition and degradation.
The surface properties of a device can have an important effect on the device’s interactions with its most immediate environment and substances with which it comes into contact. As a result, the device’s surface chemistry has a vital role on the surface functionality and, therefore, overall performance of the device and drug.
Metered-dose inhalers (MDIs) are commonly used to deliver drugs for treating respiratory and nasal disorders. The drugs are administered by aerosol, in suspension or solution, with a liquefied gas propellant. For more than 50 years, chlorofluorocarbons (CFCs) were the propellants of choice, but these have now largely been phased out, in line with the Montreal Protocol.
Replacement propellants have been developed over the past two decades based on hydrofluoroalkanes (HFA), specifically HFA 227 and HFA 134a. These substances are not ozone depleting, they are also nonflammable and chemically inert, making them ideal candidates for use in medical products. However, some properties of these compounds are substantially different from those of the CFCs that were traditionally used in MDIs.
The surface properties of a device can have an important effect on the device’s interactions with its most immediate environment and substances with which it comes into contact. As a result, the device’s surface chemistry has a vital role on the surface functionality and, therefore, overall performance of the device and drug.
When HFA-MDI drug formulations are in suspension, interactions with the canister substrate can cause deposition of the drug on the canister walls or on exposed surfaces of the valve components. Interactions with solutions more commonly cause degradation, resulting in increased impurity levels. In both cases the interaction leads to a reduction in the drug content in the formulation, resulting in the patient receiving less than the prescribed dose.
RANGE OF COATINGS
Applying a suitable surface coating to the MDI components improves the stability of the formulation as well as the product performance, and helps to extend the product’s shelf life. A range of coatings have been developed that can be applied to both the canister (Figure 1) and valve components to protect the contents from deposition and degradation.

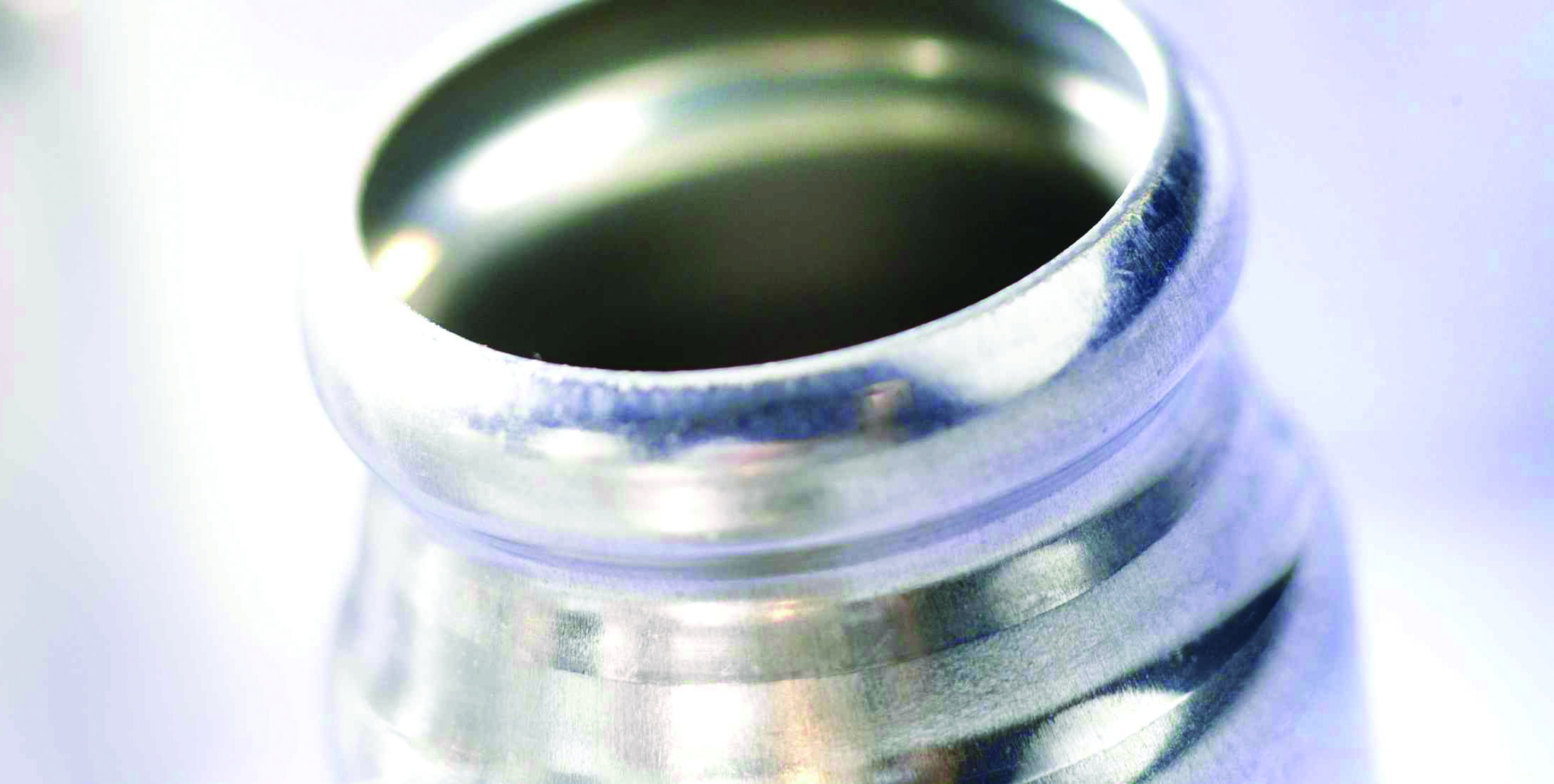

Figure 1: MDI canisters.
Commonly used coatings include barrier coatings, such as anodisation of the canister, to change the surface characteristics and ultimately act as a protective barrier for sensitive formulations. Various low-surface energy coatings are available for suspension formulations. For example, a surface treatment has been especially developed for deep-drawn 5052 aluminium canisters and is suitable for budesonide HFA; new coating compounds have been developed that prevent certain HFA-containing drug formulations (for example, salbutamol (albuterol)) from interacting with the MDI and adhering to canister walls.
Fluorocarbon polymers are commonly used to coat the interior canister surfaces to eliminate adhesion or deposition of salbutamol on canister walls; salbutamol is widely used with MDI drugs, particularly beclomethasone diproprionate. Fluorocarbon polymers used in coatings are commonly made from multiples of one or more of a variety of monomers; particularly preferred coatings tend to be pure perfluoroalkoxyalkylene (PFA), and blends of polytetrafluoroethylene (PTFE) and polyethersulphone (PES), due to their relatively high ratios of fluorine to carbon. In addition, coatings that combine fluorocarbon polymers with nonfluorcarbon polymers (such as polyamides) are used for certain formulations to improve adhesion of the coating to the canister walls; other coating types include epoxyphenol resins.
COATING TECHNIQUES
Standard metal coating techniques can be used to pre-coat the metal substrate and cure it, prior to shaping the metal into the components (for example, through deepdrawing or extrusion). This pre-coating method has the advantage of being well suited to high-volume production.
Other coating techniques include: spraying the insides of preformed cans; dipping; or electrostatic dry-powder coating, followed by curing. Many of these processes require high temperatures (up to 400°C when curing), which can create additional costs and complications. Furthermore, only the most robust canisters (that is, those produced through deep-drawing) should be subjected to such high temperatures, as less robust canisters can become unrolled or suffer other morphological changes under these conditions.
PLASMA PROCESSING TECHNOLOGIES
More recently, gas plasma-based processes have been developed to modify and improve the surface energy performance of an MDI canister. Gas plasma processing is an industrial technique that is carried out in a vacuum to coat a wide range of substrate materials. The process involves constant or pulsed excitation of gas by either radio frequency (RF) or microwave field to produce an energetic plasma.
Figure 2: a) Traditional plasma processing does not ensure a uniform coating to internal wall of the canister whereas b) the new plasma process gives a uniform coating to canisters.
The process creates an ultra-thin layer that protects against degradation, deposition and corrosion. It is a low-temperature process (<75°C for metallic substrates and <45°C for polymeric substrates), and is ideal for uniform treatments of components with complex shapes, including small components in large volumes. The coating adheres well to the component substrate, because the plasma process cleans the component surface while in the vacuum, resulting in an ultra-clean substrate-coating interface.
Using gas plasma to tailor the surface chemistry has the advantage of providing uniform surface treatment without changing the properties of the bulk material. The process can be used to change the outermost layers of the material only, without polymerising a coating, resulting in modifications to the functional chemistry. These modifications can be used “standalone” or with the addition of a subsequent surface coating through a single process cycle, depending on the application and desired properties.
OPTIMISING THE PLASMA PROCESS
Plasma processing of MDI canisters can bring multiple benefits to the MDI performance, helping to reduce drug deposition and also to improve the stability of formulations where interactions with the aluminium substrate would lead to product degradation and reduced shelf life. However, plasma processing for MDI canisters needs to be highly controlled to ensure complete consistency of treatment and uniformity of coating to the internal walls of the canisters.
Plasma chemistry is critical to the performance of the coated canisters – the right choice of precursor chemistry enables a robust process with excellent performance. A variety of plasma treatments have been tried in the past, including single- and dual-layer technologies with a range of monomers, but these have failed to penetrate the market due to poor scalablity and cost viability. However, alternative developments have become available that make plasma a real choice for MDI cans.
A cost-effective process has been established using an optimised plasma chemistry consisting of an intrinsically robust monomer, highly ionised to form a high crosslink density. The ultra-pure gases and monomers do not contain any solvents, so do not produce any waste by-products. The result is a coating technology without the extractable issues potentially encountered with some polymer systems.
It is critical that plasma processing achieves complete and consistent coating across the entire surface of the inside of the canister. Traditional plasma processes, RF or microwave, are particularly difficult to control when internal surfaces are to be treated. Poor penetration of plasma ions with low energy results in non-uniform, thin or porous coatings with poor performance. Increased ion energy to aid depth of can penetration gives rise to ion etching at the can neck and a more “line-of-sight” process.
This partial “line-of-sight” process leads to non-uniformity/thickness variation in such geometries (see Figure 2a). For thin nanometre coatings on MDI cans this is observed as striations in colour or colour bands down the can. With the best compromise the coating builds up around the canister lip, throat and base, with depletion at the rim, shoulders and can corners.
More recently, an improved process has been developed that eliminates the issues associated with typical plasma system designs. Using proprietary gas/monomer delivery configurations and electric field control (designed specifically for can coating geometry), uniform coatings can be deposited (Figure 1b).
Dedicated system design configurations mean constant, high deposition rates with extreme reproducibility in terms of coverage, chemical speciation and product performance. The unique combination of process equipment design and precursor monomer means the technology is now scalable to handle the throughput and commercial demands of the global MDI market.
This process has been used to develop several different plasma coating options that successfully prevent drug deposition on the can walls, and prevent drug degradation in solution or suspension. Examples include surface treatments for budesonide, formoterol, fluticasone proprionate and beclomethane dipropionate, amongst others.
CONCLUSION
Gas plasma processing offers considerable advantages in the coating and treating of MDI canisters for improving the stability of the formulation and extending product shelf life. In addition, the ability to plasma process high volumes of the canisters fulfils the high volume demand from the MDI market worldwide.
